DURIO LED TUBE VERSION

LED Panel Edgelit
Durio LED Tube Version
LED Panel Edgelit

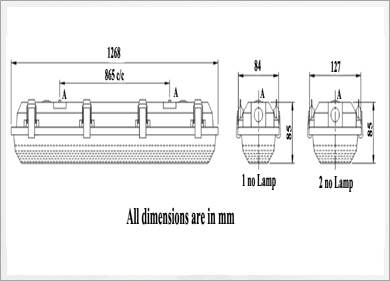

Dimension Details
LED Panel Edgelit
Application

Description

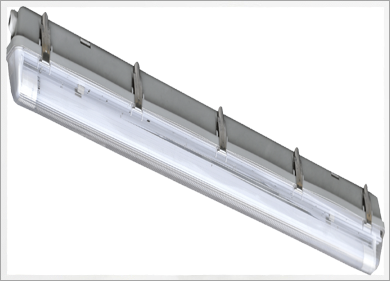

Venture make Weather proof luminaire suitable for T8 LED tubular lamps offers wide range of applications ideally suits industrial lighting, commercial space, storage and retail sector. These LED fixtures are built to provide resistance to impact and moisture. Lighting effect is striking and modern that brings freedom to end user through reliable T8 LED Tubes.

Specifications & Features

  • This corrosion resistance housing comprises of chemically inert, mechanically stable polycarbonate body. The cover also acts as a reflector and has a convenient toggle fixing arrangement. With CRCA cover it provides additional protection against dust and industrial waste.
  • Clear polycarbonate cover is fixed to the housing by 8 No of sturdy SS toggles helps in lamp replacement. Pre wired housing comes with 3 way, 10A PBT connector.
  • The channel is fabricated from CRCA MS sheet in stone grey semi-gloss finish. The channel cover is also made out of CRCA MS sheet and is finished in stove enamel white. The holder plates are made out of engineering plastic. Offered in below lengths to cater standard lamp dimensions.
  • Completely prewired along with all accessories. Suitable for T8 LED Tube (VLI 7256) having one-side live connection. Offered in 2 Lamp 4 ft version &1 Lamp 4 ft version.

    • Installation & Maintenance

  • Surface mount with 2 No of M4 screws (part of standard supply) at pitch of 865mm, through stainless steel clamp

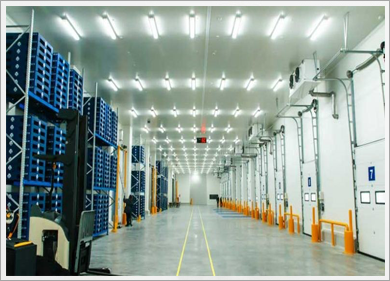

    • Applications

  • Cold storage & Laboratories
  • Paint factories & Paper mills
  • Dairies & Food processing plant
  • Textile mills & Catering kitchens

    • Compliance

  • IP 65
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLI3012 VLIS/303/1X4FT/NGR/V0 20W 5700K 0.12 Amps < 10% >0.95 1.5kg
    VLI3013 VLIS/303/2X4FT/NGR/V0 40W 5700K 0.15 Amps < 10% >0.95 2kg
    Lamp Enclosed Rated
