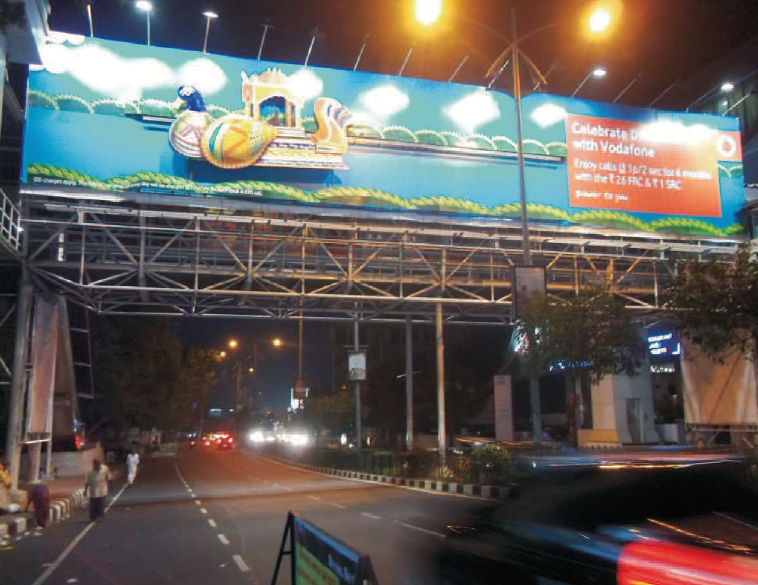

Applications
Construction sites
Coal yards
Railway marshalling yards
Airport aprons
Sports stadium
Facade lighting

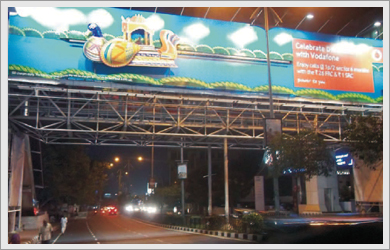

Security lighting
Semihigh mast lighting

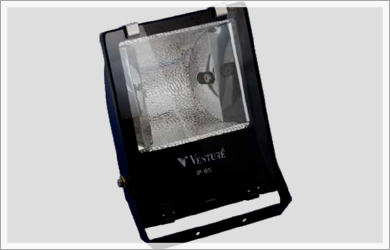

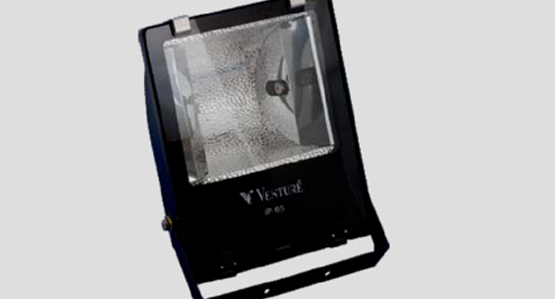

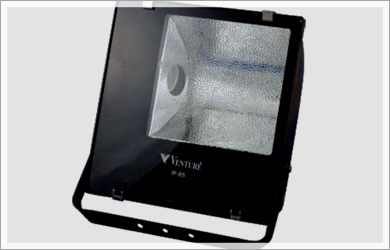

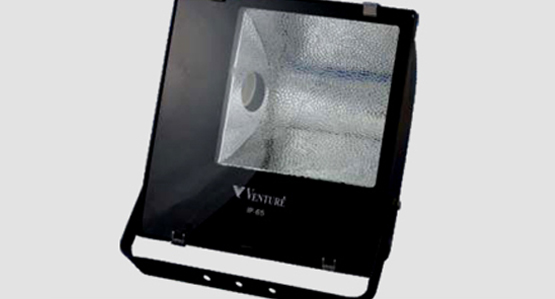

Construction
Die cast aluminium corrosion resistant housing, heat resistant silicon rubber gasket, high purity anodised aluminium reflector, heat resistant & toughened glass cover, mounting M.s. cradle fitted with copper wound ballast, PF correction capacitor and electronic ignitor are prewired upto terminal block.
Epoxy Powder coated painting
Stainless steel toggles & earthing terminal
Relamping from front side
RX 7s holder
IP 65 protection
Reflector
Electrochemically brightened and high purity anodized aluminium hammered finish reflector provides excellent light distribution.
| Part No |
Lamp Type |
Lamp Qty |
Wattage |
Nominal Rated Voltage |
A |
B |
C |
| VL/HLT-70W |
MH |
1 |
70 |
220 / 240 |
365 |
230 |
125 |
| VL/H LT- 150W |
MH |
1 |
150 |
220 / 240 |
365 |
230 |
125 |

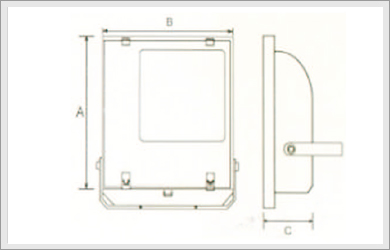

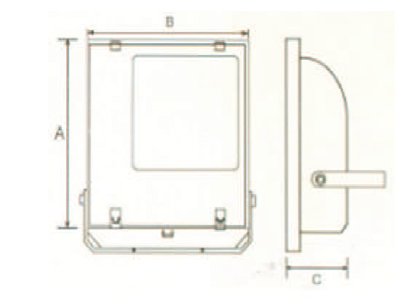

Dimensions (mm) +/- 5%

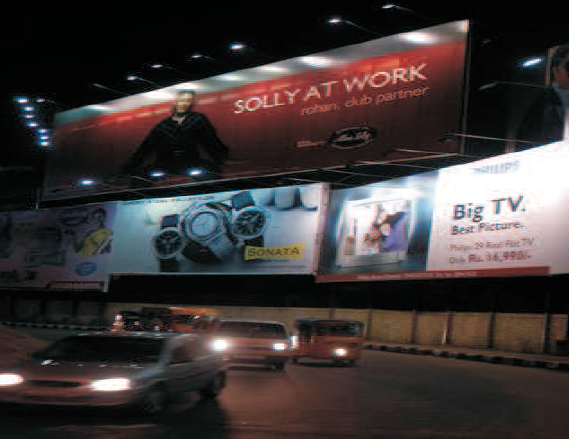

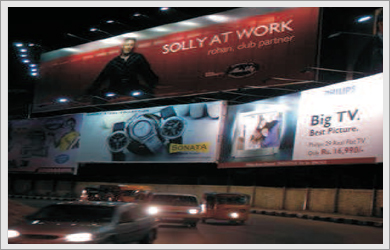

Applications
Construction sites
Coal yards
Railway marshalling yards
Airport aprons
Sports stadium
Facade lighting
Security lighting
Semihigh mast lighting
Construction
Die cast aluminium corrosion resistant housing, heat resistant silicon rubber gasket, high purity anodised aluminium reflector, heat resistant & toughened glass cover, mounting M.s. cradle fitted with copper wound ballast,
PF correction capacitor and electronic ignitor are prewired upto terminal block
Epoxy Powder coated painting
Stainless steel toggles & earthing terminal
Relamping from front side
E40 holder
IP 65 protection
Reflector
Electrochemically brightened and high purity anodized aluminium hammered finish reflector provides excellent light distribution.
| Part No |
Lamp Type |
Lamp Qty |
Wattage |
Nominal Rated Voltage |
A |
B |
C |
| VL/HLT - 200W |
MH |
1 |
200 |
220 / 240 |
435 |
415 |
145 |
| VL/HLT - 250W |
MH/SV |
1 |
250 |
220 / 240 |
435 |
415 |
145 |
| VL/HLT - 320W |
MH |
1 |
320 |
220 / 240 |
435 |
415 |
145 |
| VL/HLT - 400W |
MH/SV |
1 |
400 |
220 / 240 |
435 |
415 |
145 |

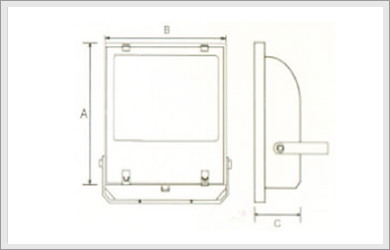

Dimensions (mm) +/- 5%
