VENTURE LED LIGHTING

Indoor Commercial Lighting

PDF Version

DAISY SUSPENDED

LED Panel Edgelit

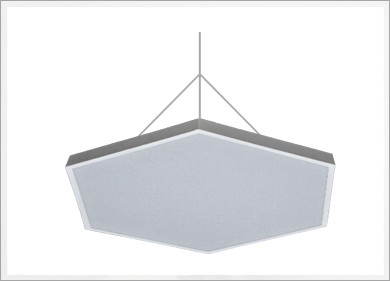

Daisy Suspended
LED Panel Edgelit

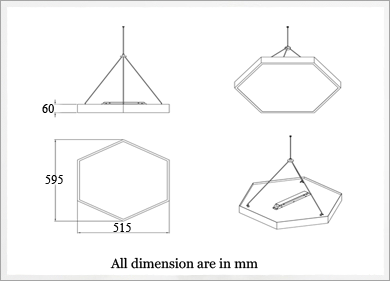

Dimension Details
LED Panel Edgelit

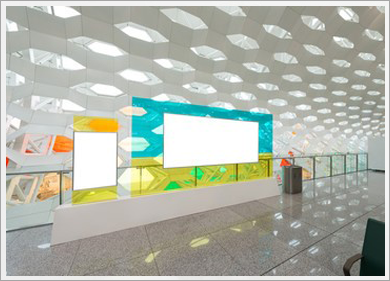

Application

Description

Daisy Suspendedis geometric design luminaire for public areas, representative rooms, communicative meeting areas and its application can be found in numerous surroundings. The luminaire provides hospitality environment to the interiors with a distinct appearance designed to provide to provide clean, clear & glare free impactful lighting.

Specifications & Features

  • Options are available with wattages 25W, 30W, 36W in 600mm dia, with best in class Lumen per watt- more light for less cost.
  • Indoor commercial suspended luminaire with CRCA housing in white powder coated housing.
  • Hexagonal shape CRCA housing body used for excellent mechanical stability.
  • Diffuser is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
  • Uniform, high quality light, with good color rendering capabilities reveals true color of your surrounding space.
  • The luminaire has a storage temperature > 50deg C with THD < 10%. .
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life..
  • In-built electrical protections like over voltage, short circuit, over load, mis wiring , surge protection of min 2kV internal with electrical class I rating for additional safety precautions.
  • In built constant current driver is provided in the luminaire housing or driver can be provided externally to place driver remotely also.
  • The luminaire is rated for Efficacy of 100 LPW, Pf >0.95 , THD <10%.

    • Installation & Maintenance

  • Easy installation of Three point to Single point suspension system.
  • Easy height adjustable Universal Suspended system upto 1500 mm.
  • Easy LED driver replacement on top of the Fixture.

    • Applications

  • Office Lighting
  • Modern Interiors
  • Retail Stores
  • Airport Terminals
  • Museums

    • Compliance

  • IP 20
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLC1232 VLCP/128/25/57/00/0.6M/NWH/V0 25W 5700K 0.109 Amps < 10% >0.95 3.4kg
    VLC1233 VLCP/128/30/57/00/0.6M/NWH/V0 30W 5700K 0.130 Amps < 10% >0.95 3.4kg
    VLC1234 VLCP/128/36/57/00/0.6M/NWH/V0 36 W 5700K 0.155 Amps < 10% >0.95 3.4kg
    Lamp Enclosed Rated
